RJ45 8P8C metal shielded DB9 white core magnetic ring black 200mm industrial wiring harness

Customized Design: Industrial Wire Harnesses can be customized to fit specific industrial applications, accommodating various wire gauges, connectors, lengths, and configurations.

High-Quality Components: These harnesses utilize high-quality wires, cables, connectors, and terminals that are durable, reliable, and capable of withstanding harsh industrial conditions.

1. Product description

RJ45 8P8C metal shielded DB9 white core magnetic ring black 200mm industrial wiring harness metal shielding design, with good anti-interference performance. Metal shielding can effectively block the influence of external electromagnetic interference on the signal and provide more reliable data transmission. The RJ45 8P8C connector is used at one end of the harness, and the DB9 connector is used at the other end of the harness, which is commonly used for serial communication interface, with magnetic ring welded in the middle, and the DB9 connector uses white rubber core. This magnetic ring can provide electromagnetic shielding and anti-interference capabilities, helping to maintain signal integrity and stability.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Security systems: This industrial wiring harness can be used in various security systems such as access control systems, alarm systems, and video surveillance systems. They can transmit control signals, sensor signals and video signals to realize linkage and data transmission between devices.

II: Energy and power systems: This industrial harness plays an important role in the energy and power sector. Wiring harnesses can be used to connect power equipment, energy monitoring systems, and power dispatch and control systems to transmit relevant power signals and monitoring data.

III: Communication equipment: The industrial wiring harness connects network equipment, communication base stations, and wireless sensor networks to transmit Ethernet data and serial data. Wire harnesses provide reliable data connections and communication signal transmission between communication devices.

1.2 Feature

I: Metal shielding: The industrial wiring harness adopts metal shielding design, with good anti-interference ability. Metal shielding can effectively prevent the influence of external electromagnetic interference on signal transmission and improve the stability and reliability of data transmission.

II: Connection Type: This industrial harness uses RJ45 8P8C and DB9 connectors for Ethernet and serial communication interfaces, respectively. This type of connection is widely used in industrial equipment and communication systems.

III: Plug and unplug times: The industrial harness has a good plug and unplug times, can withstand frequent connection and disconnection operations. This is important for application scenarios where equipment needs to be replaced or maintained frequently.

2. Product information

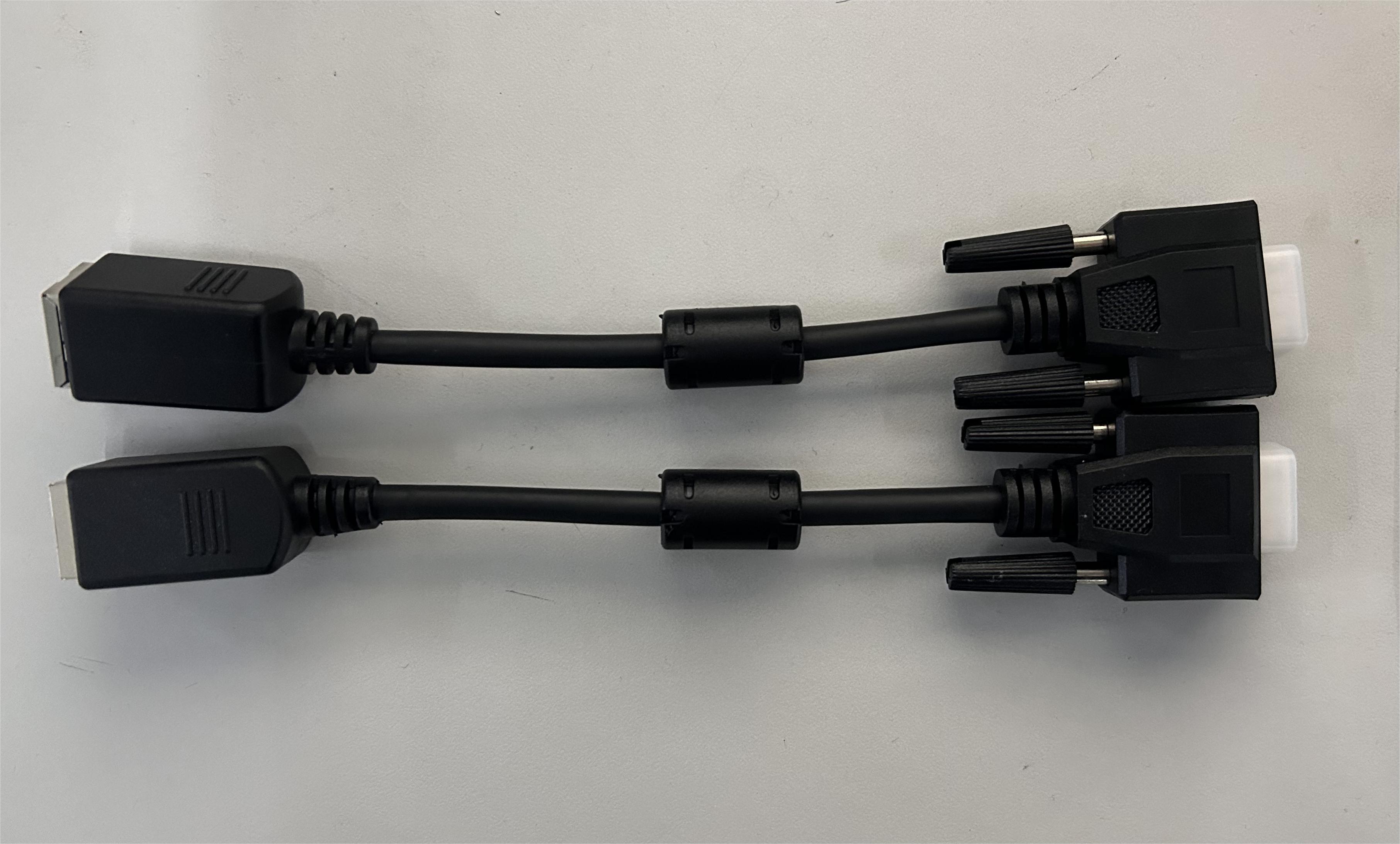

2.1 Picture of real products
