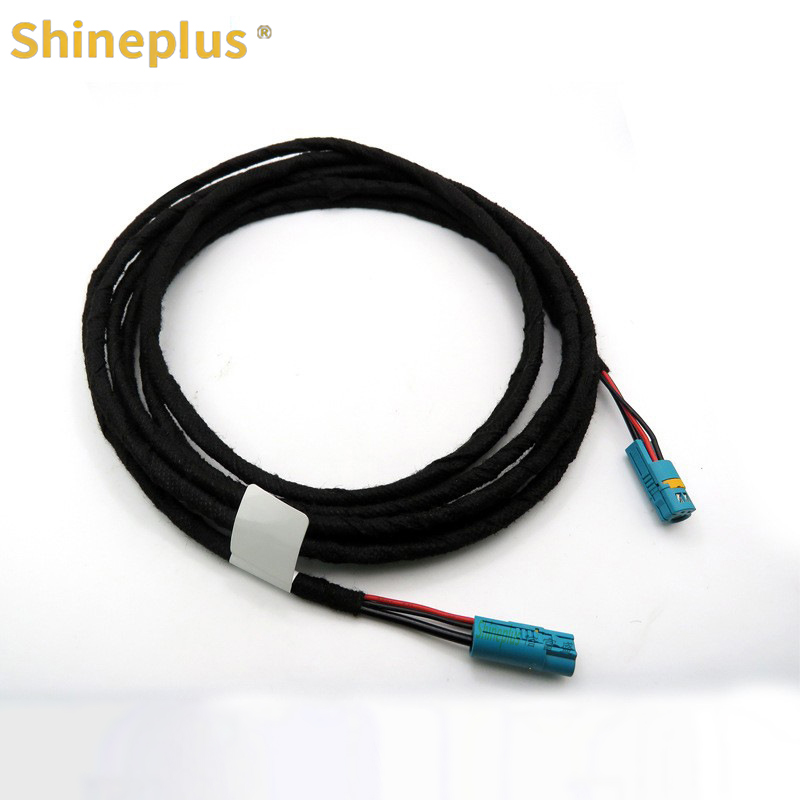

FAKRA+2 automotive electronic rearview mirror connection wire reverse image transfer harness fakra
1. Product description
1.1 Electrical characteristics
Rated current: 50Ω
Rated voltage: 60V DC
Operating voltage: 335Volts rms
Insulation resistance: 1000MΩ MIN
Withstand voltage: 500Volts rms
Current: 1A MAX
Contact resistance of inner conductor: 5MΩ MAX
Contact resistance of outer conductor: 5MΩ MAX
Standing wave ratio/echo loss: 0-3GHz≤1.5,3-6GHz≤1.58
1.2 Mechanical property
Durability: 50 Cycles Min
Insertion force: 30N Max
Pull out force: 2N Min
Clasp holding force: 100N Min
Anti-misinsertion efficiency: 40N Min
1.3 Environmental characteristics
Application temperature: -40℃ to +105℃
Thermal shock: -40°Cto +85°C,100cycles
Vibration and mechanical impact: Random,5~10ms,35Gs,1/2sine
Temperature and humidity cycle: Random,5~10ms,35Gs,1/2sine
Water proof: IS0206531P69K;Submersion over 120 hours
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | FAKRA+2 automotive electronic rearview mirror connection wire reverse image transfer harness fakra |
Harness material | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
Product application | New energy vehicle wiring harness |
Length, color | Customized according to customer needs |
Samples | Samples confirmed first before mass production |
Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test requirement | Salt spray test: ≥48H |
MOQ | Negotiable |
After-sales service | Authentic guaranteed, factory outlets center |
3. Picture of real products
4. Application area
I: Automotive rearview mirror system: FAKRA connection wire and transfer wire harness are used to connect the car rearview mirror to the vehicle's reversing image system. The display screen on the rear view mirror receives the video signal transmitted by the reversing camera through these connections, so that the driver can observe the situation behind in real time.
II: Reversing assistance system: Reversing image system is usually equipped with reversing assistance functions, such as distance cue line, obstacle detection and sound cue, etc. The FAKRA connection wire and transfer wire harness are used to transmit the signals needed for these auxiliary functions, helping the driver better judge the distance and position between the vehicle and obstacles.
III: Automotive safety and driver assistance systems: FAKRA connectors and transfer hardings can also be used in other automotive safety and driver assistance systems, such as forward view cameras, blind spot monitoring systems and lane keeping assistance systems. These systems utilize similar connectivity standards and interfaces for signal transmission and functional operation.
5. Feature
I: Reverse image transmission: The car wire harness can realize the reverse transmission of the rearview mirror image, so that the picture presents a normal orientation, convenient for the driver to directly observe the rear situation. This reverse image function greatly improves driving safety.
II: Small size, easy to install: The automotive wire harness uses high purity oxygen free copper as a conductor, with excellent electrical conductivity, can effectively transmit high-definition video signals. The conductor structure is soft, easy to install wiring, adapt to the narrow and complex space environment in the car.
III: Anti-interference: The cable of the automobile wire harness adopts double-layer shielding design, which can effectively isolate external electromagnetic interference, ensure the clarity and stability of video signal transmission, and improve image quality.
|
|
