High flexible single core electrical cable PUR sheath heat resistant halogen free
1. Product description
High flexible single core electrical cable PUR sheath heat resistant halogen free composed of a conductor used to transmit a single signal or power source. Polyurethane (PUR) is an elastic, wear-resistant material that is commonly used as a sheath for cables. With good mechanical strength and chemical resistance, PUR sheath is able to provide reliable cable protection in harsh industrial environments. Highly flexible cables are flexible and bendable, allowing them to be installed and used freely in tight Spaces or applications requiring frequent bending. This feature makes the cable easier to wire and install and suitable for complex industrial environments. The cable does not contain halogen compounds such as chloride and bromide. Conventional halogenated cables can release harmful gases and fumes when burned, posing potential risks to human health and the environment. Halogen-free cables are manufactured from halogen-free materials, which are environmentally friendly with lower smoke and toxic emissions.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | High flexible single core electrical cable PUR sheath heat resistant halogen free |
Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
Product application | For use in and on mobile equipment,the 1000 V version with thick insulation wall is ideal for many measuring instruments such as multimeters. For measuring assemblies in technical training sessions, education and electric laboratories |
High Light | Single core copper wire,single core pvc insulated cable |
Rated temperature | -40℃~80 ℃ |
Flame rated | IEC60332-1-3, FT1, FT2 |
Voltage withstand test | AC 2.5kV/1min |
Minimum bending radius | Flexing 7,5x cable Ø fixed installation 4x cable Ø |
Percent of original elongation | 1~2 weeks |
After-sales service | Authentic guaranteed, factory outlets center |

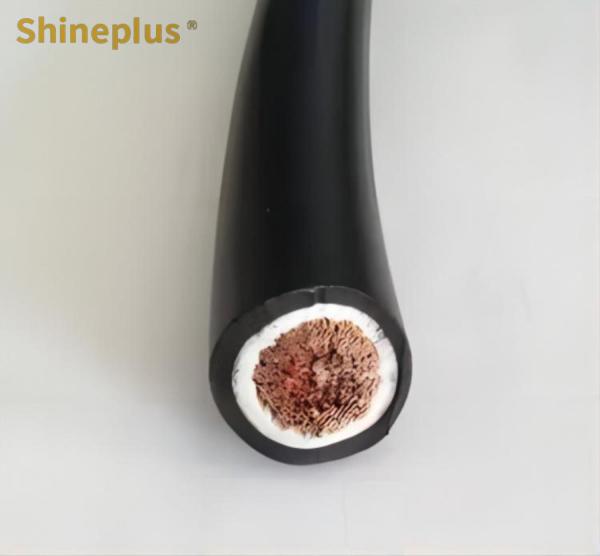

3. Picture of real products
4. Application area
I: Industrial automation: Highly flexible single-core cables are widely used in the field of industrial automation for signal transmission and power supply. For example, they can be used to connect sensors, actuators, motors, and control devices, among others, for proper operation of automation systems.
II: Mechanical equipment: This type of cable is suitable for various mechanical equipment, such as machine tools, printing presses, packaging machines, conveying systems, etc. Due to its high flexibility and wear resistance, it can be installed and used on the moving parts of the equipment to provide reliable signal transmission and power supply.
III: Automotive electronics: Due to their heat resistance and durability, highly flexible single-core cables are often used in automotive electronic systems such as engine control units (ECUs), sensors, motors, body control modules, etc. Can withstand high temperature environment and mechanical vibration, and ensure reliable signal transmission and power supply.
5. Feature
I: Highly flexible design: The cable uses a special single-core wire structure and polyurethane (PUR) sheath material for excellent flexibility and bending resistance. It can withstand more than 1 million repeated bends, which is very suitable for high-frequency mobile industrial automation equipment and mechanical arms and other scenarios.
II: Excellent heat resistance: With excellent heat resistance of PUR sheath material, the cable can withstand a wide temperature working range from -40°C to +80°C, meeting the needs of high and low temperature use in industrial environment. It also has good oil resistance and corrosion resistance.
III: Halogen-free and low smoke design: The PUR sheath and inner core materials are halogen-free and low smoke formula, which will not produce toxic and harmful gases in case of fire, greatly reducing the risk of personal injury and property loss. The cable complies with the halogen-free and low-smoke requirements of IEC 60754-1/2 and IEC 61034-1/2.
|
|
