1Coaxx,36AWG,0.38MM ultra-fine coaxline USW electronic harness for consumer electronics

1. Product description

1Coaxx,36AWG,0.38MM ultra-fine coaxline USW electronic harness using 36AWG (0.38mm) specification wire, extremely thin structure design, easy to flexible wiring in small space; The conductor uses high purity oxygen-free copper to ensure excellent electrical conductivity. The electronic harness is also equipped with braided copper shielding to effectively prevent electromagnetic interference (EMI) and ensure signal integrity. In addition, the electronic wiring harness adopts ultrasonic welding process to ensure stable and reliable connection, which is widely used in consumer electronics, communication equipment and medical equipment.

2. Product information

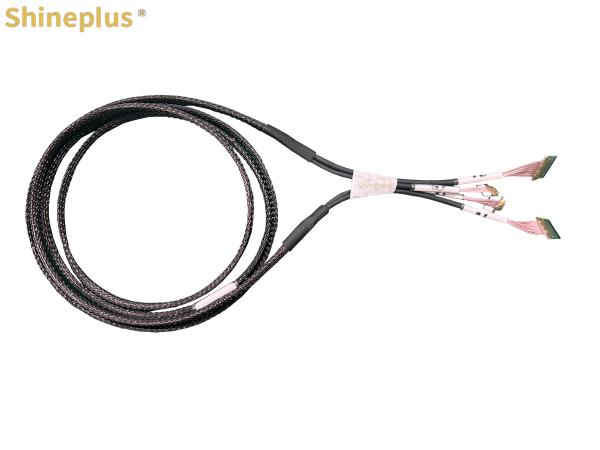

3. Picture of real products

4. Application

I: Consumer electronics: In mobile phones, tablets, and audio and video devices, this electronic harness is used for signal transmission to ensure high-quality transmission of audio and video signals. Its extremely fine design makes wiring more flexible inside a compact device.

II: Communication equipment: This electronic harness is suitable for wireless communication equipment, such as Wi-Fi modules and Bluetooth devices, which are responsible for the transmission of high-frequency signals. Good shielding performance effectively prevents electromagnetic interference and improves signal stability and integrity.

III: Automotive electronics: This extremely thin coaxial electronic wire harness plays an important role in automotive sensors and communication modules, supporting data transmission and signal connection. Its high temperature resistance and anti-interference characteristics are suitable for the demanding requirements of automotive environment.

5. Character

I: Ultrasonic welding compatibility: The electronic harness adopts ultrasonic welding design to ensure the stability and reliability of the connection. Suitable for all kinds of electronic equipment production and assembly, improve production efficiency.

II: Compliance with international standards: The electronic harness complies with UL, RoHS and other international standards to ensure its safety and environmental protection. After strict testing, ensure product quality consistency and performance reliability.

III: Ultra thin wire design :36AWG (0.38mm) wire, making the harness superior in space constrained applications. The extremely fine design provides better flexibility for flexible installation in complex wiring environments.

IV: High electrical conductivity: The electronic harness uses high purity oxygen-free copper to ensure excellent electrical conductivity. Provide stable signal transmission, suitable for high frequency applications, reduce signal loss.
